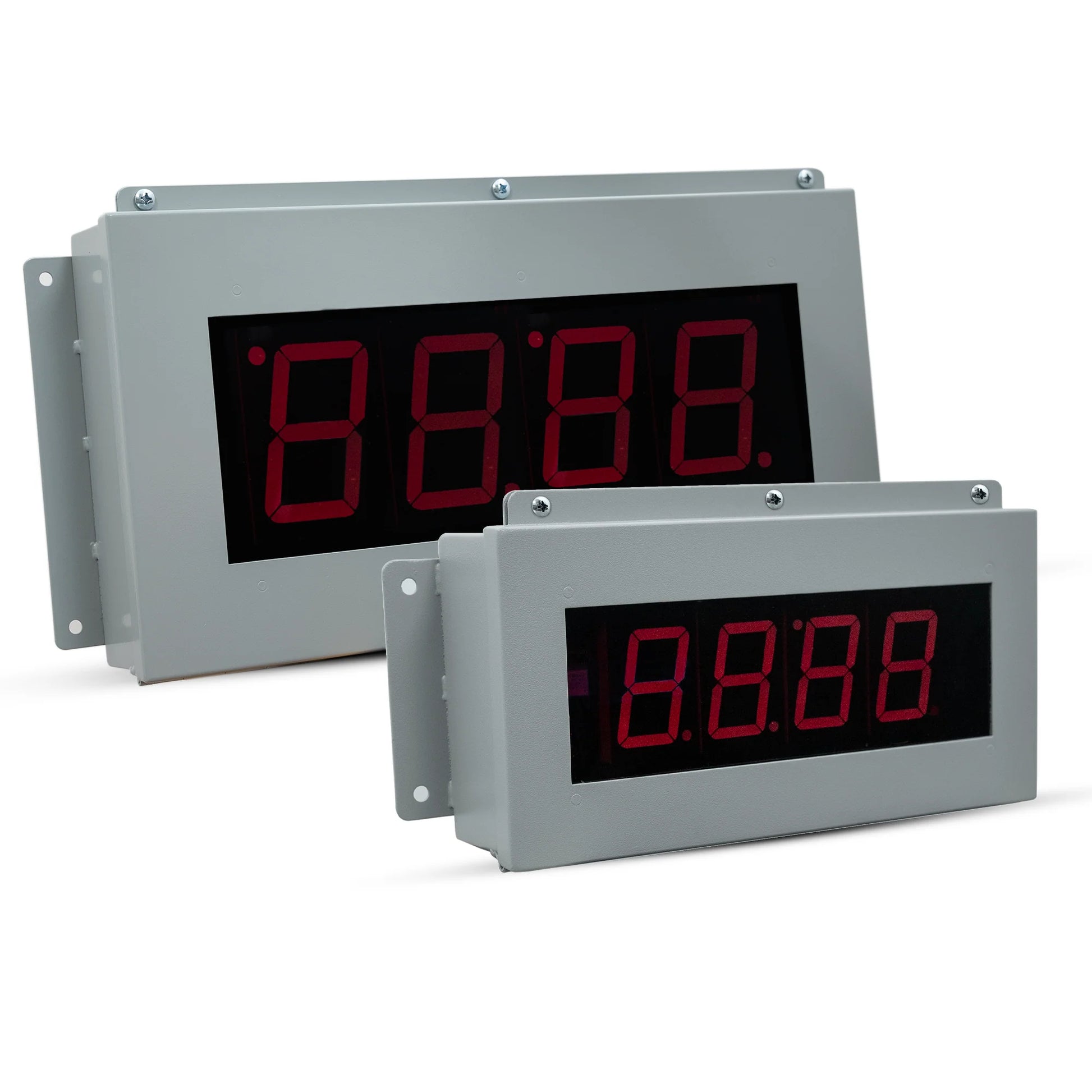

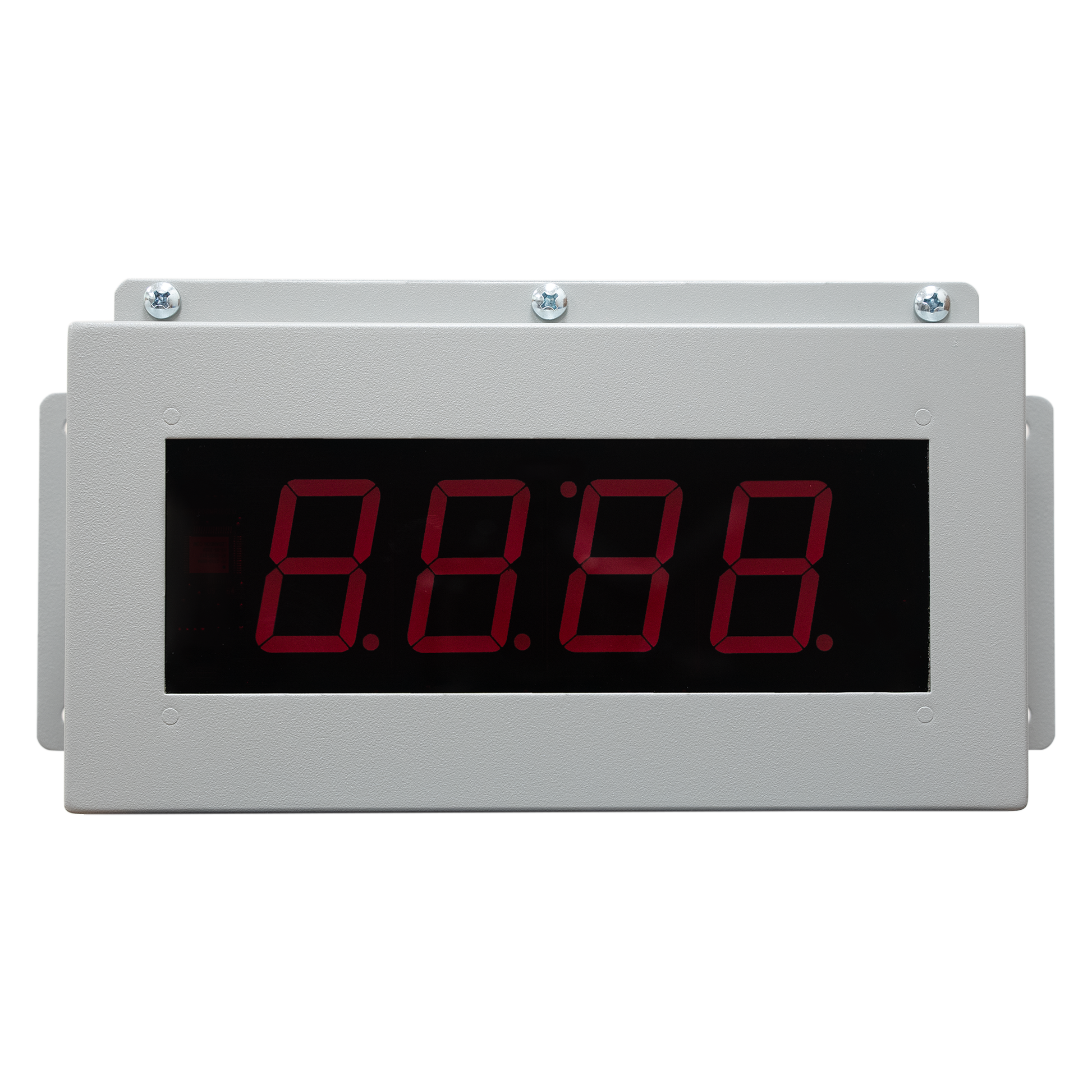

Wireless Andon's AF-2620 LED Timers and Counters, from Signaworks, can be used in any combination of custom assembly. These timers and counters are great tools for real-time data analysis and downtime monitoring.
Wireless Andon partners with Signaworks, a leader in the signals industry for over thirty years, to bring you wide selection of wireless signals. Signaworks specializes in customization.If you don't see what you want here, please call us at 740-917-5781 to discuss solutions with one of our Designers.
Features
Counter or Timer
Selectable as a Production Counter or Production Timer
Wireless Key Fob Controller (100 foot range) - Programmed only for Timmer

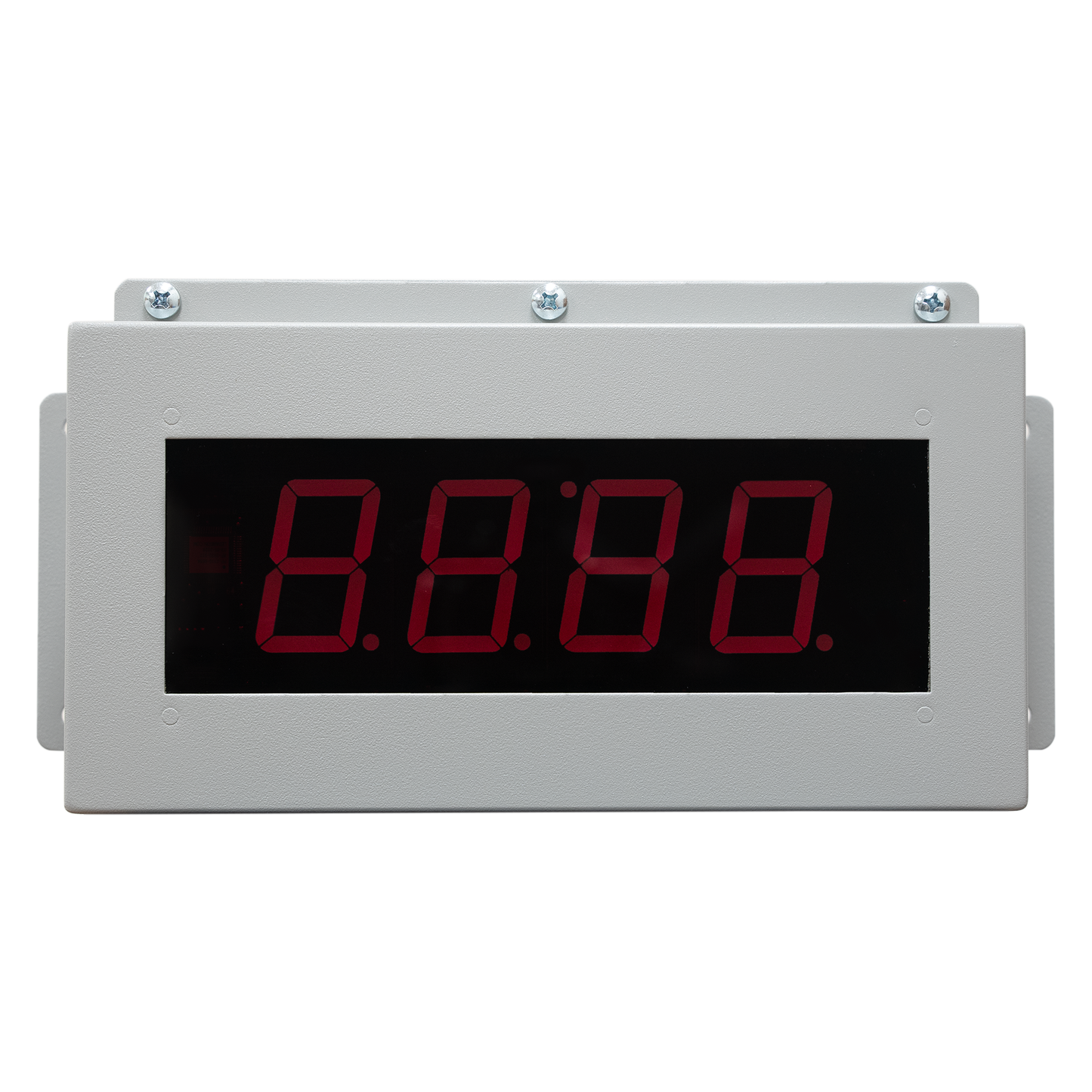

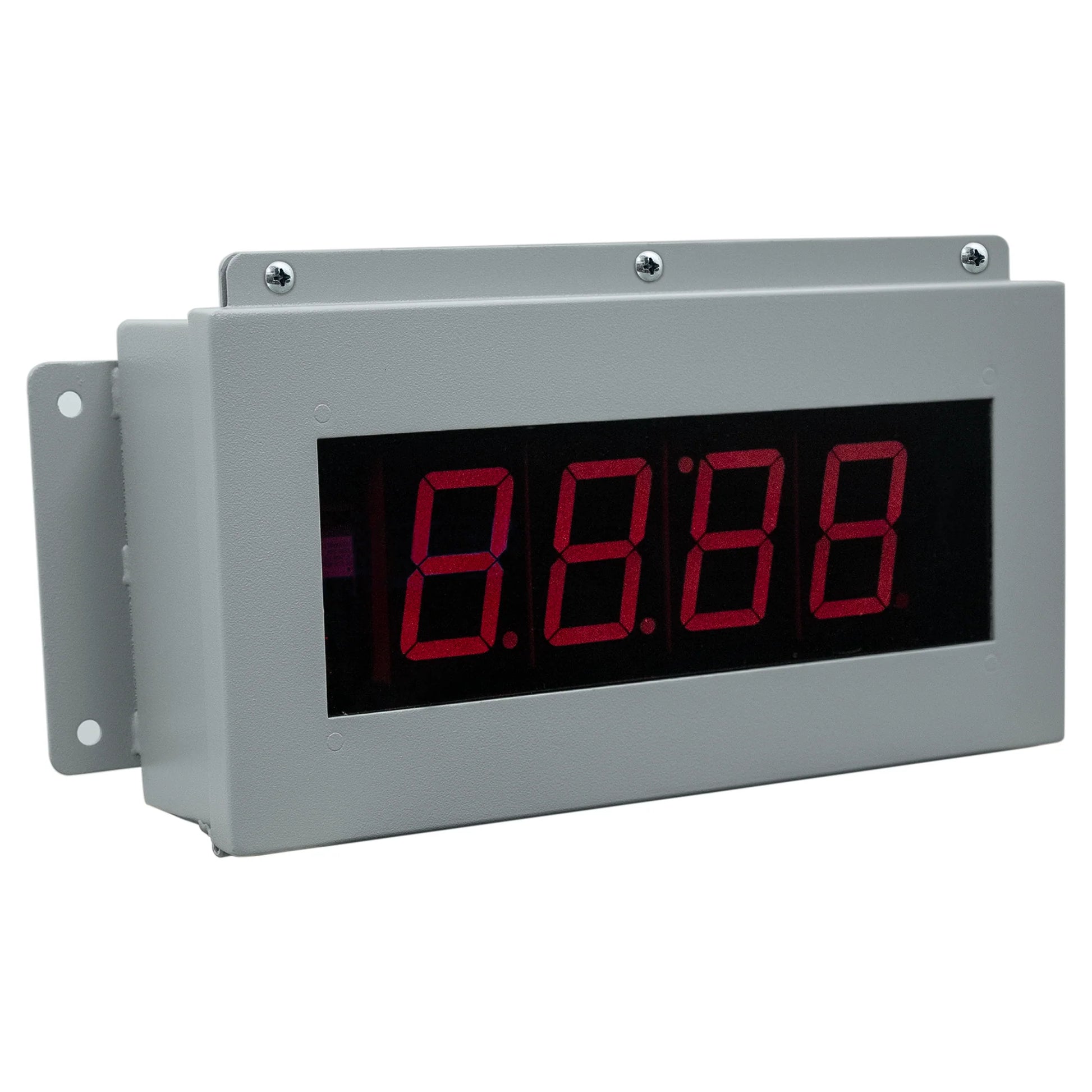

7 segment LED, 2.3 inch high, visible up to 125 feet

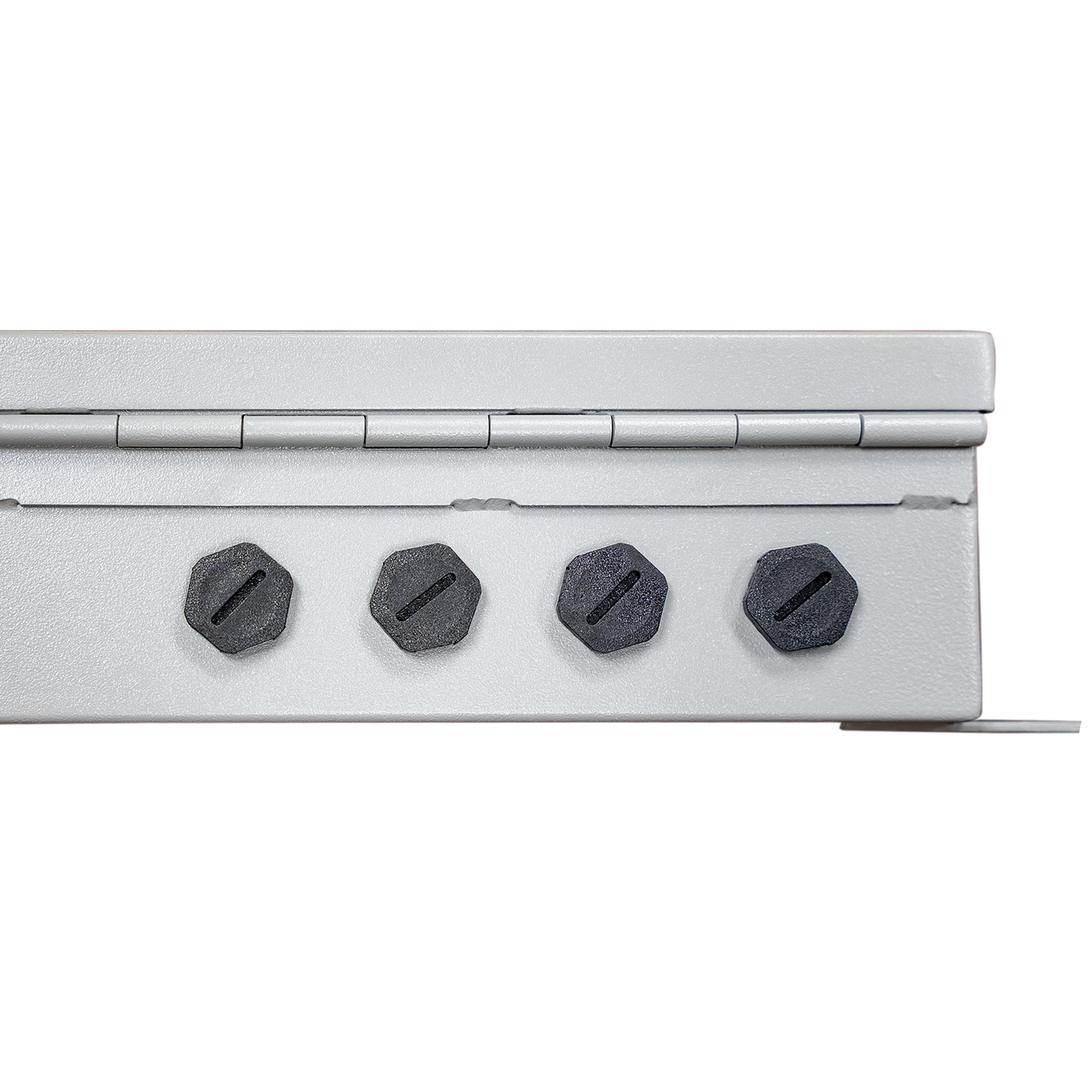

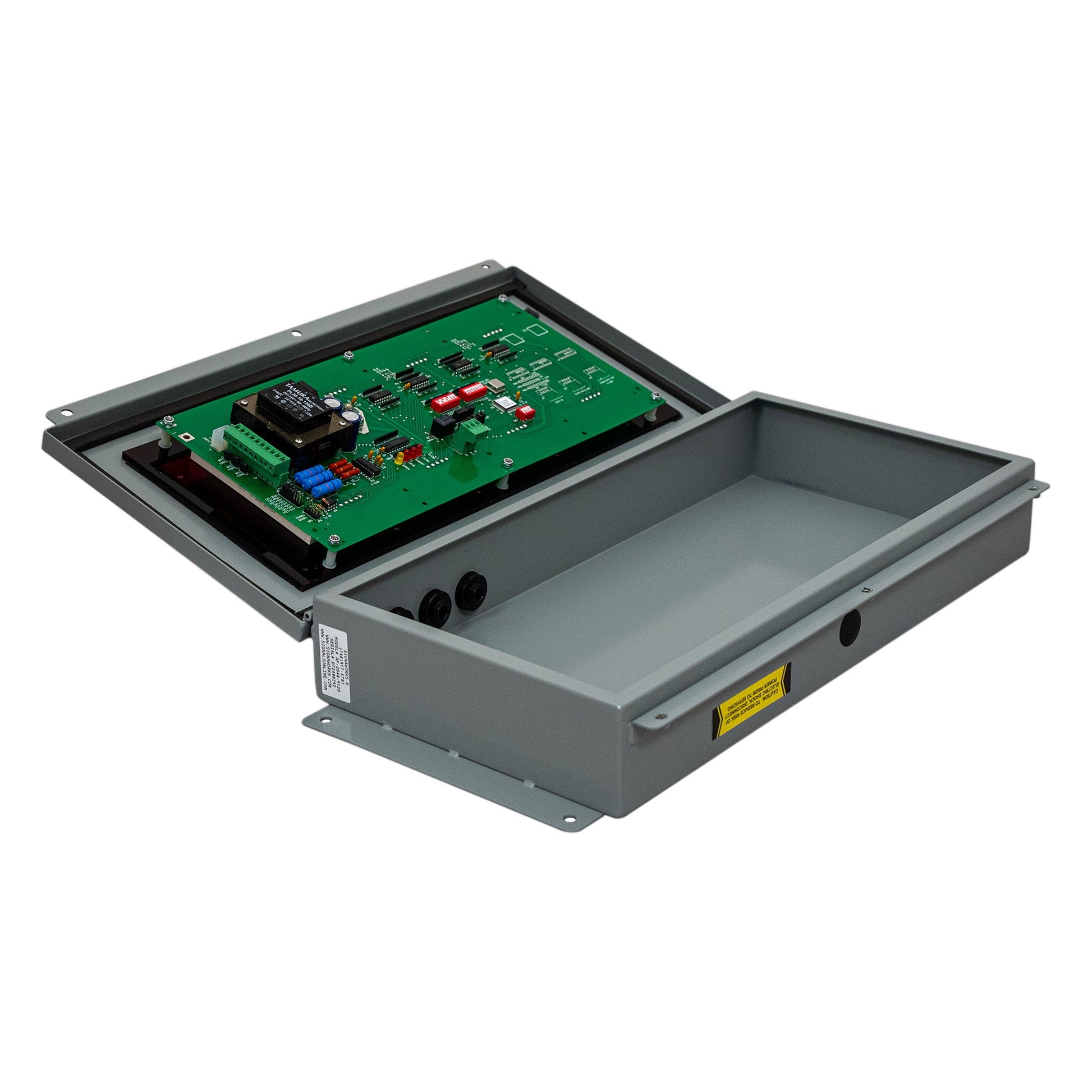

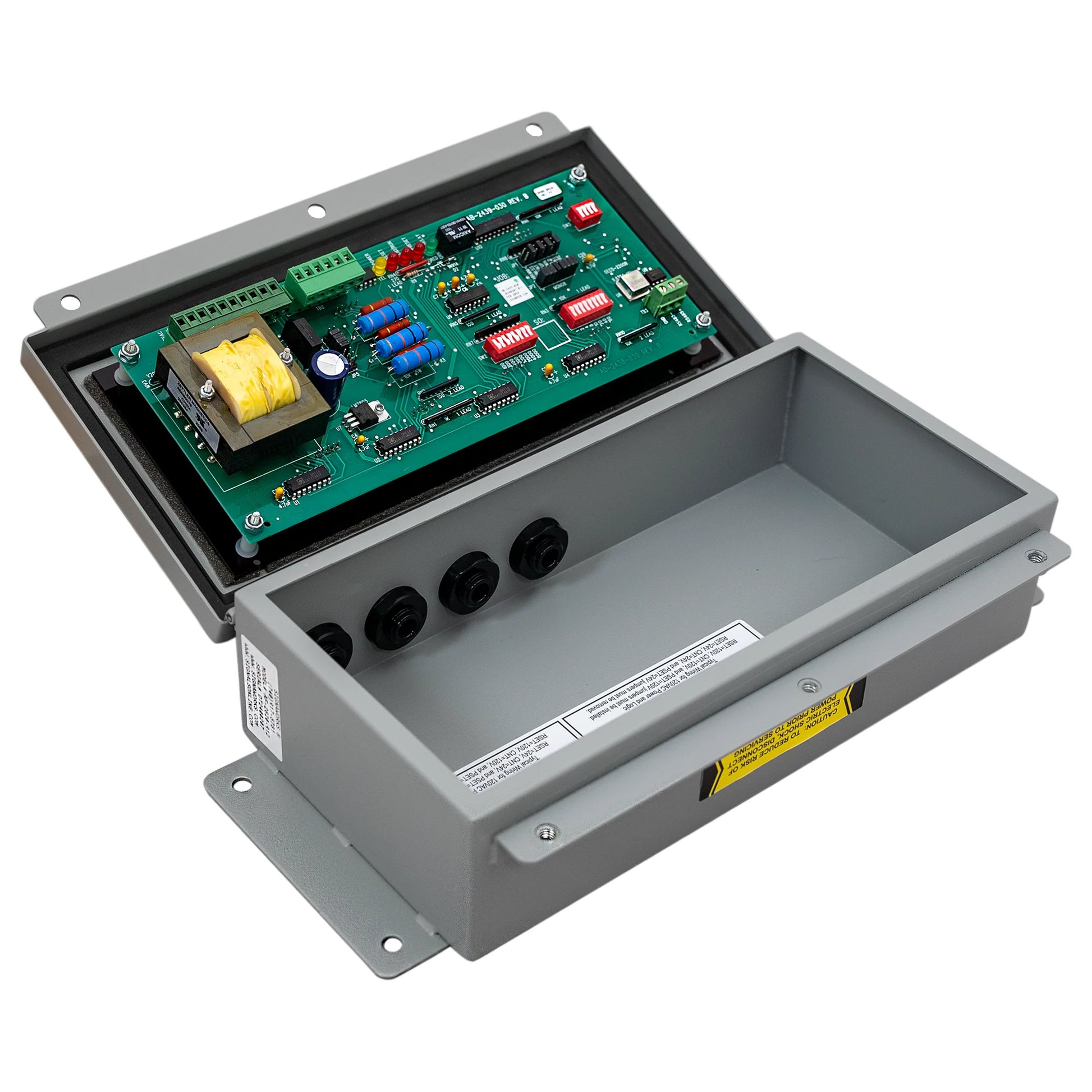

NEMA 12, gray, 16 Gauge steel enclosure with hinged door
120 VAC power at 1 amp
Zero or blank setting for any digit not used
Relay output when count/time reaches zero or preset

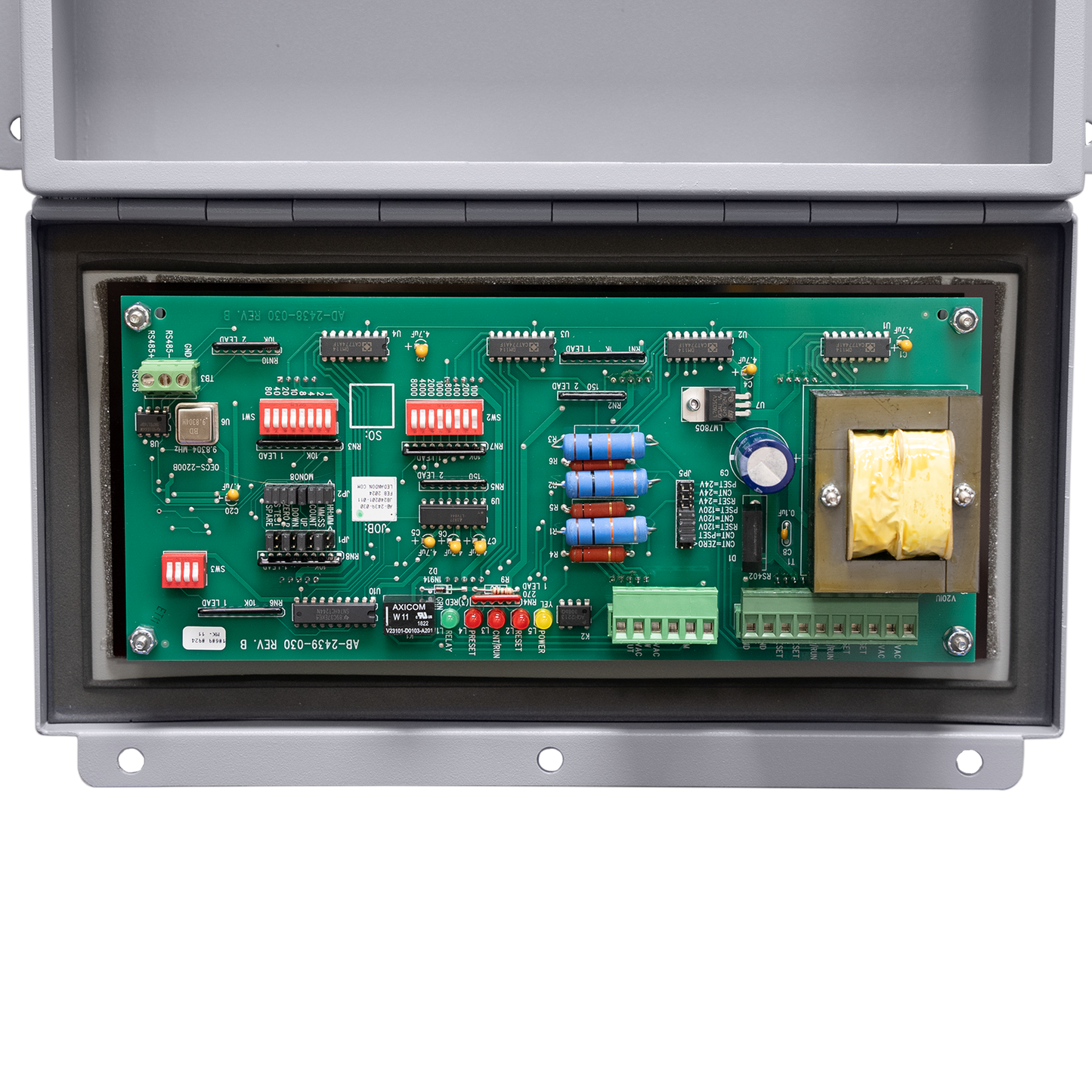

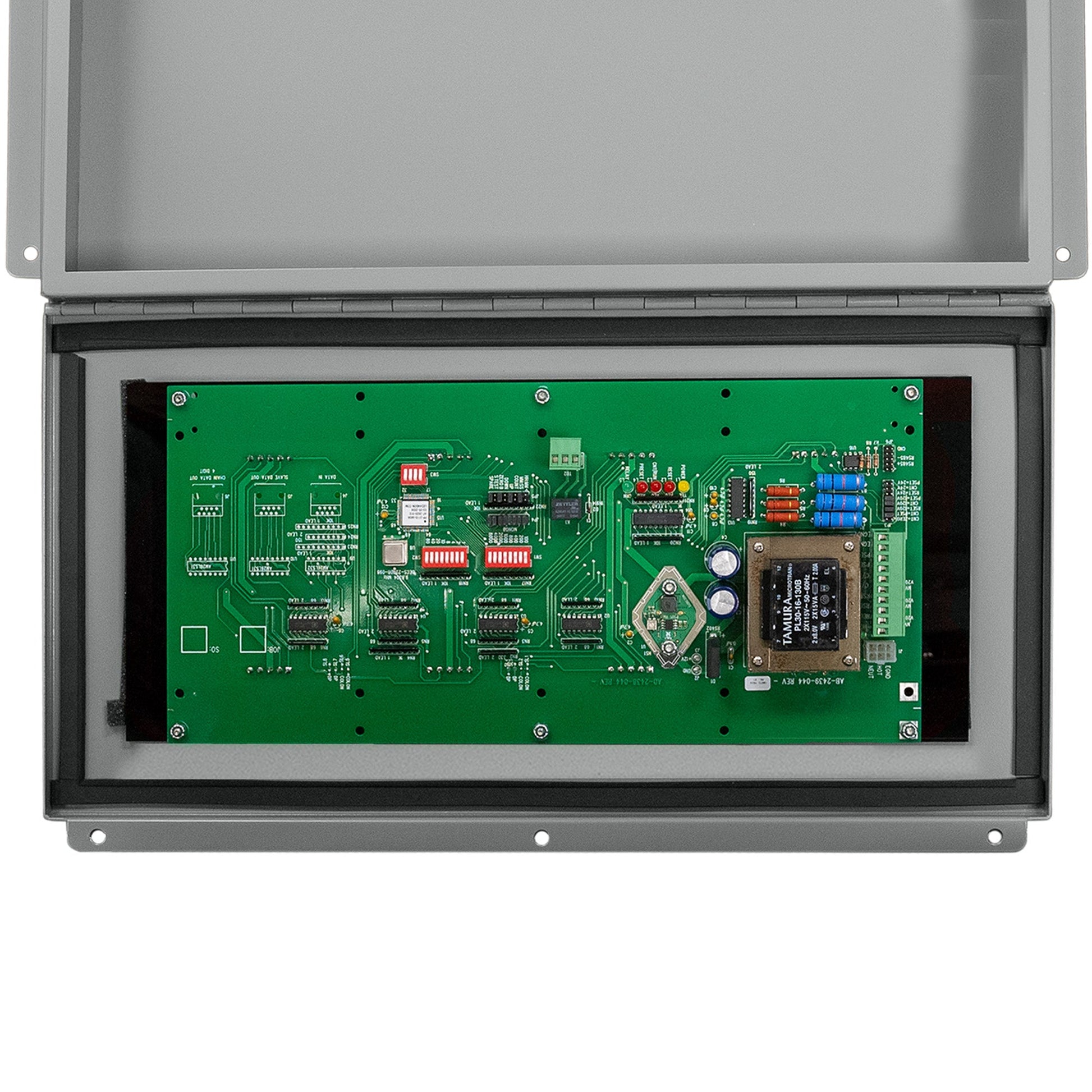

Variety of options and features are jumper selectable
Up to 16 units can be connected via RS485 to PC
1/4 inch thick acrylic sheet for display window
Screw terminal connections
Counter(Not available with Wireless Key Fob; hard wired is available)
Count up or count down
Relay output when count reaches zero or preset
120 VAC or 24 VDC count input
Optional Accessories (Call for Quote)
Manual count and reset box (AFC-030)
Retro-reflective photo kit box with reset push button (AFC-026)
